One LG SOLAR PANEL 255 watts Excellent Condition 30v+ DC, 8.24 A - $220 (Holmen, WI)
condition:
excellent
make / manufacturer:
LG
model name / number:
LG255S1C-G3
size / dimensions:
64.57 x 39.37 x 1.38 in
QR Code Link to This Post
Model: LG255S1C-G3
is a 60 cell PV panel. See photos for details.
Excellent, strong, original connectors, looks and works great.
Could be made into a Solar Power System by adding a battery, etc.
(Could be used with a charge controller, 12v deep cycle battery, and a small inverter to charge and run 120v household appliances, charge any phones, notebooks, tablets, and USB, and 12 volt items, etc.)
Details:
High Efficiency Mono X Module Cells: 6 x 10 Module, 60 cells.

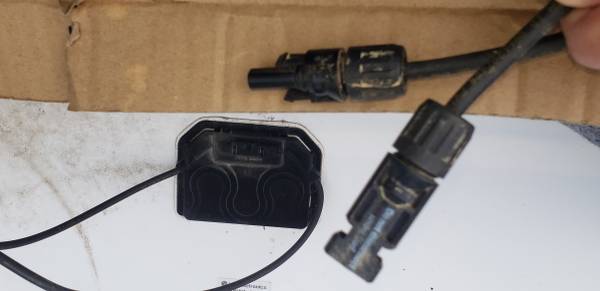

Connector Type: standard MC4 connector
IP67 waterproof
Dimensions (L x W x H) 1640 x 1000 x 35 mm
64.57 x 39.37 x 1.38 in
Static snow load 5400 Pa / 113 psf
Static wind load 2400 Pa / 50 psf
Weight 16.8 ± 0.5 kg / 36.96 ± 1.1 lb
Connector type MC4 connector IP 67
Junction box IP 67 with 3 bypass diodes
Length of cables 2 x 1000 mm / 2 x 39.37 in
Glass High transmission tempered glass
Frame Anodized aluminum
Plan to meet at a local public location with a cash payment
I prefer you pick it up, but Delivery may be available within 10 miles of Holmen, WI for full payment and a small delivery fee, ~$20, but prefer cash and you pick up.
Advanced Details / Mechanical Properties:
Cells: 6 x 10
Cell vendor: LG
Cell type Monocrystalline
Cell dimensions 156 x 156 mm2 / 6 x 6 in2
# of busbar: 3
Dimensions (L x W x H) 1640 x 1000 x 35 mm / 64.57 x 39.37 x 1.38 in
Static snow load 5400 Pa / 113 psf
Static wind load 2400 Pa / 50 psf
Weight 16.8 ± 0.5 kg / 36.96 ± 1.1 lb
Connector type: MC4 connector IP 67
Junction box IP 67 with 3 bypass diodes
Length of cables 2 x 1000 mm / 2 x 39.37 in
Frame Anodized aluminum
Certifications and warranty:
Certifications IEC 61215, IEC 61730-1/-2, IEC 61701, DLG-Fokus Test “Ammonia Resistance”, UL 1703, ISO 9001
Output warranty of Pmax (measurement Tolerance ± 3%) Linear warranty*
* 1) 1st year: 97%, 2) After 2nd year: 0.7%p annual degradation, 3) 80.2% for 25 years
Temperature Coefficients
NOCT 44.9 ± 2 °C
Pmpp -0.459 %/K
Voc -0.343 %/K
Isc 0.054 %/K
Electrical Properties (STC*)
Maximum power at STC (Pmax) 255
MPP voltage (Vmpp) 31.0
MPP current (Impp) 8.24
Open circuit voltage (Voc) 38.4
Short circuit current (Isc) 8.72
Module efficiency (%) 15.5
Maximum system voltage (V) 1000 (IEC), 600 (UL)
Maximum series fuse rating (A) 15
Power tolerance (%) 0 ~ +3
* STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate
power output is measured and determined by LG Electronics at its sole and absolute discretion.
Electrical Properties (NOCT*)
Maximum power (Pmpp) 187
MPP voltage (Vmpp) 28.1
MPP current (Impp) 6.67
Open circuit voltage (Voc) 35.5
Short circuit current (Isc) 7.05
Efficiency reduction (from 1000 W/m2 to 200 W/m2) < 4.5 %
* NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C,
wind speed 1 m/s
